Hp Enterprise

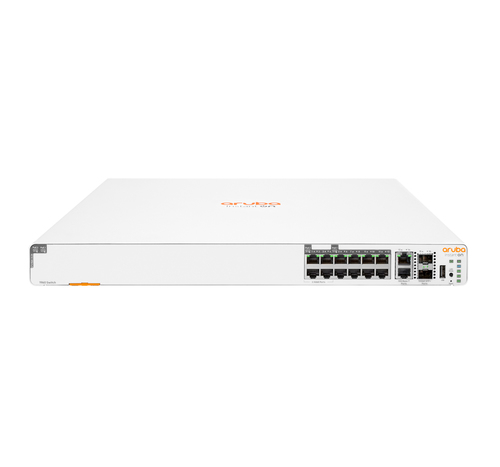

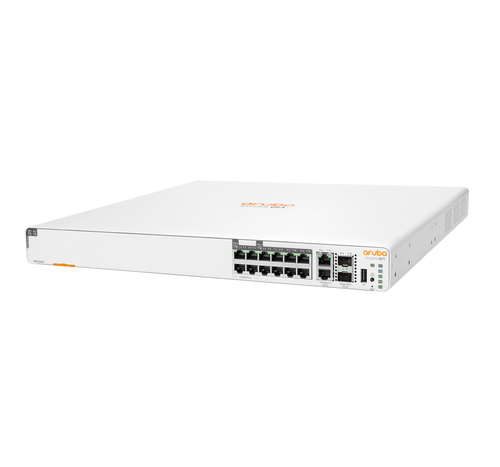

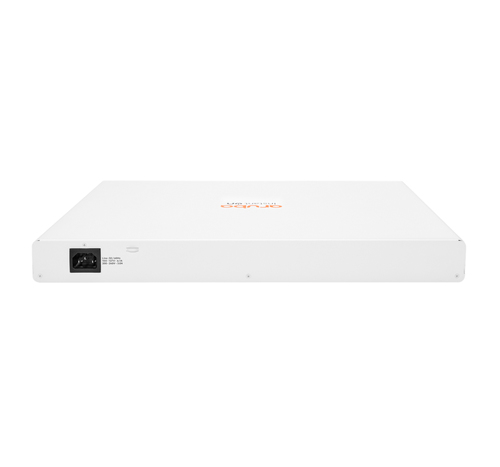

HPE Aruba Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Hp Enterprise

1.286,63 EUR  1.072,19 EUR
Shipping from 0,00 EUR*
Hardware/ Electronic
Hp Enterprise
Shipping charges are minimized.
Hp Enterprise 1Hp Enterprise 27 visitors
are looking at this item
Delivery to US in: Currently sold out but back in stock soon
Sales Rank: 0
Style: Router/Switches
Product No.: 2101026956
Description:-Gerätetyp: Switch
-LAN: 10/100/1000 MBit/s, 2500 MBit/s, 10 GBit/s, Auto-MDI/MDIX
-Anschlüsse: 14x RJ-45 (LAN) gesamt, 12x davon POE-Fähig
-Power over Ethernet [PoE]: 12x RJ-45 Anschlüsse
Manufacturer-Nr.: S0F35A
Product Safety

Compare with similar items

ITEMS
STARLINK Mini WLAN Router weiß/grau
Connect M6E 5G Mobile Wi-Fi
TP-LINK RE650 Network transmitter White 10,100,1000Mbit/s
ASUS TUF Gaming AX6000 (TUF-AX6000) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
  "Starlink-STARLINK Mini WLAN Router weiß/grau-Starlink-Hardware/Electronic" "Acer-Connect M6E 5G Mobile Wi-Fi-Acer-Hardware/Electronic" "Tp-link-TP-LINK RE650 Network transmitter White 10,100,1000Mbit/s-Tp-link-Hardware/Electronic" "Asus-ASUS TUF Gaming AX6000 (TUF-AX6000) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black-Asus-Hardware/Electronic"

Item number2101274615210142005420978722422100832201
On offer since22.10.202428.05.202529.04.201715.03.2023
Price242,79 EUR240,49 EUR81,89 EUR140,19 EUR
Weight1.1 kg295 g0.00kg696 g
ManufacturerStarlinkAcerTp-linkAsus
CategoryHardware/ElectronicHardware/ElectronicHardware/ElectronicHardware/Electronic
Antenna typeElectronic phased array 2x2 External 4x4

Other interesting products in Router/Switches
Teltonika - RUT901 Industrial LTE WiFi Router
RUT901 Industrial LTE WiFi Router
Teltonika

131,99 EUR
Draytek - Draytek Vigor 2927 - Router - 6-port switch - GigE - WAN ports: 2 - rack-mountable
Draytek Vigor 2927 - Router - 6-port switc...
Draytek

213,99 EUR
Qnap - QNAP SWI QSW-1105-5T
QNAP SWI QSW-1105-5T
Qnap

110,89 EUR
Trendnet - 26-PORT HARDENED INDUSTRIAL - GIGABIT DIN-RAIL SWITCH (TI-G262)
26-PORT HARDENED INDUSTRIAL - GIGABIT DIN-...
Trendnet

389,19 EUR
Tp-link - TP-LINK Archer TBE400UH BE6500 Tri-Band Wi-Fi 7 USB Adapter (Archer TBE400UH)
TP-LINK Archer TBE400UH BE6500 Tri-Band Wi...
Tp-link

82,29 EUR
Ubiquiti - UBIQUITI Unifi Cloud Gateway Fiber 4x2.5G 1x10G 2xSFP+ PoE+30W 500+User
UBIQUITI Unifi Cloud Gateway Fiber 4x2.5G ...
Ubiquiti

269,59 EUR
Ubiquiti - 8P Ubiquiti USW-Flex-2.5G-8-PoE M POE
8P Ubiquiti USW-Flex-2.5G-8-PoE M POE
Ubiquiti

181,59 EUR

Technical specifications

Language

Ports & interfaces

2.5G Ethernet (copper) ports quantity4
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP+ module slots quantity2

Network

10G supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Auto-sensingYes
Flow control supportYes
Full duplexYes
Half duplexYes
Link aggregationYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Spanning tree protocolYes
VLAN supportYes

Power

AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)790 W
Power sourceAC
Power supply includedYes

Operational conditions

Operating altitude0 - 3000 m
Operating relative humidity (H-H)15 - 95 %
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)15 - 90 %
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth350 mm
Height43.9 mm
Weight5.24 kg
Width443 mm

Security

AuthenticationPort-based authentication
Authentication typeRADIUS
DHCP featuresDHCP relay, DHCP snooping
IGMP snoopingYes
SSH/SSL supportYes

Data transmission

Jumbo frames supportYes
Latency (1 Gbps)1.8 µs
Latency (10 Gbps)2.8 µs
Latency (10-100 Mbps)4.1 µs
MAC address table16000 entries
Packet buffer memory1.5 MB
Switching capacity116 Gbit/s
Throughput172 Mpps

Management features

Cloud-managedYes
Switch typeManaged
Web-based managementYes

Protocols

Management protocolsSNMPv1, SNMPv2c, SNMPv3
Supported network protocolsHTTPS

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget480 W

Design

Form factor1U
Rack mountingYes
StackableYes
Wall mountableYes

Performance

Built-in processorYes
Flash memory512 MB
Internal memory1024 MB
Memory typeDDR3-SDRAM
Physical stacking (units)4
Processor frequency800 MHz
Processor modelARM Cortex-A9
