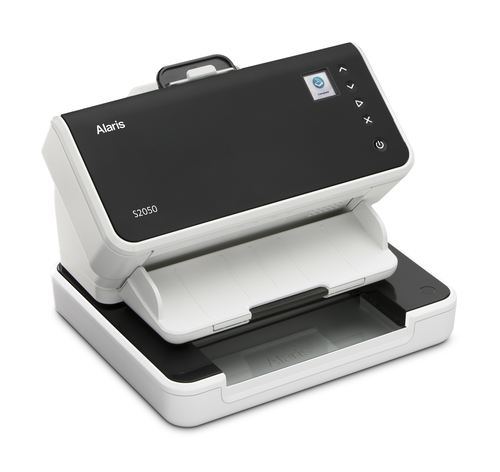

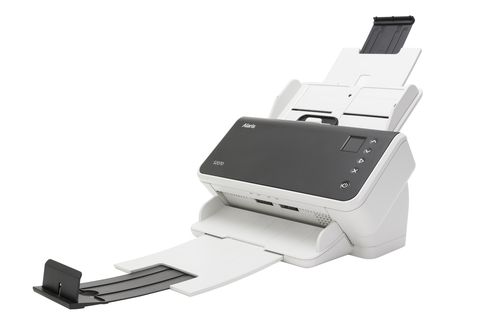

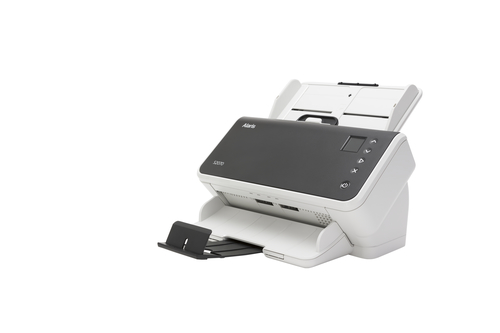

Alaris S2050 - document scanner - 216 x 3000 mm - 600 dpi x 600 dpi - up to 50 ppm (single colour) / up to 50 ppm (colour) - automatic document feeder (80 sheets) - up to 5000 scans/day - USB 3.1 group scanner manufacturer Kodak Alaris manufacturer art. Nr. 1014968 Model Alaris S2050 EAN/UPC 0041771014964 Product Description: Alaris S2050 - Document scanner - Desktop device - USB 3.1 device type Document scanner - Desktop device interface type USB 3.1 Light source RGB LED matrix Max. supported document size 216 x 3000 mm input type color grayscale/color depth 8 bits (256 scales) grayscale/color depth (external) 24 bits (16.7 million colors) Optical resolution 600 dpi x 600 dpi Maximum speed at document scan 50 ppm (single color) / 50 ppm. (color) Max document size 216 mm x 3000 mm Supported document type plain paper, card scanner document feeder type Automatic document storage capacity 80 sheets Capacity 5000
-600 x 600 dpi
-1x USB 3.0
Manufacturer No.: 1014968
The product “Scanner S2050 A4 document scanner” by Kodak in the Scanners category has a height of 182.5 mm, a depth of 269 mm and a width of 312 mm. It is available with the following cables: AC, USB, has an input voltage of 100-240 V, supports the following Windows operating systems: Windows 10, Windows 7, Windows 8.1, weighs 7 kg and has the color black, white.
Kodak Alaris Germany GmbH Augsburgerstrasse 712, 70329 Stuttgart, Deutschland pt-service@kodakalaris.com
Technical specifications
Language
Weight & dimensions
Depth
269 mm
Height
182.5 mm
Weight
3.3 kg
Width
312 mm
Ports & interfaces
Standard interfaces
USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1)
USB connector type
USB Type-B
USB port
Yes
USB version
3.2 Gen 2 (3.1 Gen 2)
System requirements
Minimum RAM
3430 MB
Minimum processor
INTEL CORE i3 - 4150 processor
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Power
AC input frequency
50 - 60 Hz
Auto power off
Yes
Auto power off after
240 min
Input voltage
100-240 V
Power consumption (PowerSave)
3 W
Power consumption (off)
0.5 W
Power consumption (standby)
3 W
Power consumption (typical)
36 W
Power supply
36 W
Power supply type
AC
Scanning
ADF scan speed (b/w, A4)
50 ppm
ADF scan speed (colour, A4)
50 ppm
ADF scan speed (greyscale, A4)
50 ppm
Black/white scanning colour modes
Grayscale
Colour scanning
Yes
Duplex ADF scan speed (b/w, A4)
100 ipm
Duplex ADF scan speed (colour, A4)
100 ipm
Duplex scanning
Yes
Film scanning
No
Flatbed scan speed (b/w, A4)
5 sec/page
Greyscale levels
256
Input colour depth
30 bit
Maximum scan size
216 x 3000 mm
Optical scanning resolution
600 x 600 DPI
Output colour depth
24 bit
Output greyscale depth
8 bit
Output monochrome depth
1 bit
Operational conditions
Operating relative humidity (H-H)
15 - 80 %
Operating temperature (T-T)
50 - 95 °F
Operating temperature (T-T)
50 - 95 °F
Paper handling
Auto Document Feeder (ADF) media weight
34 - 433 g/m²
Legal
Yes
Letter
Yes
Long-paper mode
Yes
Maximum ISO A-series paper size
A4
Maximum scan area (ADF)
216 x 356 mm
Maximum scan length
3 m
Maximum scan width
21.6 cm
Minimum scan area (ADF)
52 x 52 mm
Multi feed detection
Yes
Scanning media types supported
Business Card, Card stock, Envelopes, Plain paper, Plastic Card, Post Card(JPN), Recycled paper, Thick paper, Thin paper
Certificates
Green (Eco) compliant
Yes
Input capacity
Auto document feeder (ADF) input capacity
80 sheets
Standard input capacity
80 sheets
Other features
Certification
EPEAT Registered
ENERGY STAR Qualified
AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark), CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark), Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B), China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark), EN55022:2010 ITE Emissions (Class B), EN55024:2010 ITE Immunity (CE mark), EN60950-1:2006 +A1,+A11,+A12 (TUV GS mark), IEC60950-1:2005 +A1, Taiwan CNS 13438:2006 (Class B); CNS 14336-1 (BSMI mark), UL 60950-1:2007 R12.11 (TUV US mark), CFR 47 Part 15 (FCC Class B), Argentina S mark
Compliance certificates
RoHS
Downloadable software
Capture Pro Limited Edition, Smart Touch
Selectable background colour
No
Design
Built-in display
Yes
Display
LCD
Display diagonal
3.81 cm
Product colour
Black, White
Scanner type
ADF scanner
Touchscreen
No
Packaging content
AC adapter included
Yes
ADF paper chute
Yes
Bundled software
WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; Alaris Capture Pro Limited, Smart Touch, LINUX drivers available from www.kodak.com/go/scanonlinux (September Availability) KOFAX certified. (Future Availability)
