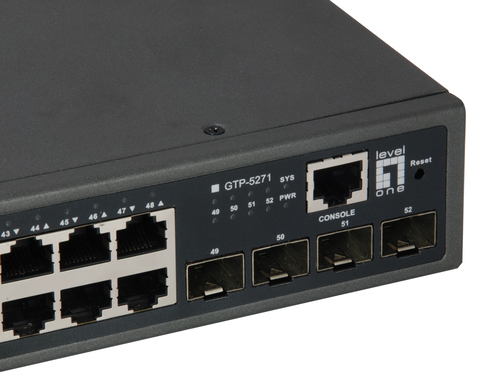

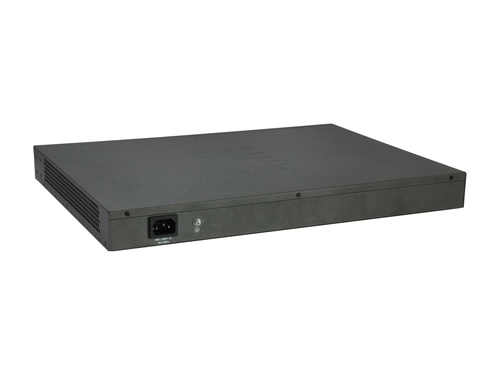

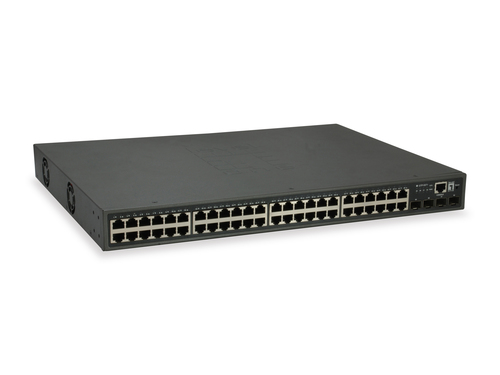

LevelOne 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x 10GbE SFP+, 48 PoE Outputs, 400W PoE Power Budget
Level One

999,59 EUR  916,79 EUR
Shipping from 0,00 EUR*
Hardware/ Electronic
Level One (tba)
Shipping charges are minimized.
Level One 1Level One 2Level One 318 visitors
are looking at this item
Delivery to US in: 4-8 workdays (only 5 left in stock)
Sales Rank: #2682 in Router/Switches
#87047 in Computer
Style: Router/Switches
Product No.: 2101216976
Manufacturer No.: GTP-5271
Product Safety

Compare with similar items

ITEMS
LevelOne 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x 10GbE SFP+, 48 PoE Outputs, 400W PoE Power Budget
STARLINK Mini WLAN Router weiß/grau
Connect Enduro M6E 5G 1GB Hotspot
TP-LINK RE650 Network transmitter White 10,100,1000Mbit/s
ASUS TUF Gaming AX6000 (TUF-AX6000) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
  "Level One-LevelOne 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x 10GbE SFP+, 48 PoE Outputs, 400W PoE Power Budget-Level One (tba)-Hardware/Electronic" "Starlink-STARLINK Mini WLAN Router weiß/grau-Starlink-Hardware/Electronic" "Acer-Connect Enduro M6E 5G 1GB Hotspot-Acer-Hardware/Electronic" "Tp-link-TP-LINK RE650 Network transmitter White 10,100,1000Mbit/s-Tp-link-Hardware/Electronic" "Asus-ASUS TUF Gaming AX6000 (TUF-AX6000) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black-Asus-Hardware/Electronic"

Item number21012169762101274615210142005420978722422100832201
On offer since18.07.202422.10.202428.05.202529.04.201715.03.2023
Price916,79 EUR245,19 EUR206,89 EUR58,89 EUR140,69 EUR
Weight4.52 kg1.1 kg295 g0.00kg696 g
ManufacturerLevel One (tba)StarlinkAcerTp-linkAsus
CategoryHardware/ElectronicHardware/ElectronicHardware/ElectronicHardware/ElectronicHardware/Electronic

Other interesting products in Router/Switches
Avm - FRITZ! Box 6850 5G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 3G 4G Black, Red, White
FRITZ! Box 6850 5G wireless router Gigabit...
Avm

452,49 EUR
Ubiquiti - Ubiquiti UXG-Lite gateway/controller 10, 100, 1000 Mbit/s
Ubiquiti UXG-Lite gateway/ controller 10, ...
Ubiquiti

100,59 EUR
Teltonika - RUT901 Industrial LTE WiFi Router
RUT901 Industrial LTE WiFi Router
Teltonika

131,99 EUR
Mikrotik - Mikrotik CCR2004-1G-12S+2XS wired router Gigabit Ethernet White
Mikrotik CCR2004-1G-12S+ 2XS wired router ...
Mikrotik

451,49 EUR
Draytek - Draytek Vigor 2927 - Router - 6-port switch - GigE - WAN ports: 2 - rack-mountable
Draytek Vigor 2927 - Router - 6-port switc...
Draytek

253,19 EUR
Teltonika - Teltonika RUTX50 wireless router Gigabit Ethernet 5G Stainless steel
Teltonika RUTX50 wireless router Gigabit E...
Teltonika

421,89 EUR
Qnap - QNAP SWI QSW-1105-5T
QNAP SWI QSW-1105-5T
Qnap

110,59 EUR

Technical specifications

Language

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Gigabit Ethernet (copper) ports quantity48

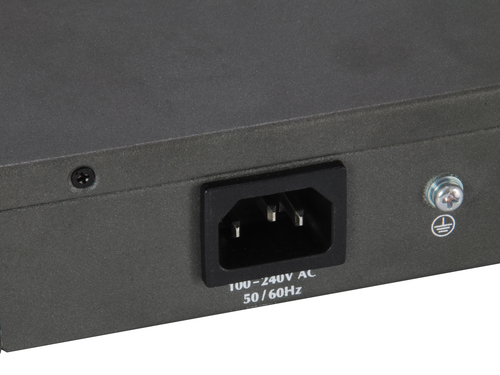

Power connectorAC-in jack
SFP+ module slots quantity4

Network

10G supportYes
Broadcast storm controlYes
Link aggregationYes
Network virtualization technologiesQ-in-Q tunneling
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Number of VLANs4096
Port mirroringYes
QinQ implementationSelective QinQ
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

Power

AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current6 A
Power consumption (max)473.7 W

Operational conditions

Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Depth330 mm
Height44.5 mm
Weight4.52 kg
Width440 mm

Security

Access Control List (ACL)Yes
AuthenticationGuest VLAN, Web-based authentication
Authentication typeRADIUS
DHCP featuresDHCP relay, DHCP server, DHCP snooping
DoS attack preventionYes
IGMP proxyYes
IGMP snoopingYes
Password protectionYes
Queue scheduling algorithmsPriority queuing (PQ), Weighted Round Robin (WRR)
SSH/SSL supportYes
Security algorithmsSNMPv3

Packaging data

Package depth390 mm
Package height80 mm
Package typeBox
Package weight6 kg
Package width596 mm
Rubber feetYes

Data transmission

Forwarding rate130.944 Mpps
Jumbo frames12000
Jumbo frames supportYes
MAC address table16000 entries
Packet buffer memory512 MB
Store-and-forwardYes

Management features

ARP inspectionYes
Configuring Location Settings (CLI)Yes
Quality of Service (QoS) supportYes
Switch layerL3
Switch typeManaged

Protocols

GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv6 Telnet

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity48
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget400 W

Design

Housing materialMetal
LED indicatorsLink, PoE, Power
Product colourGrey
Rack mountingYes
Reset buttonYes

Performance

Firmware upgradeableYes
Internal memory32 MB
TelnetYes

Logistics data

Country of originChina
Harmonized System (HS) code85176990

Multicast features

Multicast Listener Discovery (MLD) snoopingv1/v2
Multicast supportYes

Certificates

CertificationCE
Compliance certificatesRoHS

Packaging content

Cables includedAC
Quick start guideYes
Rack mount kitYes
