Ubiquiti

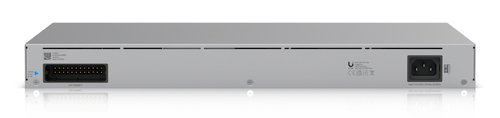

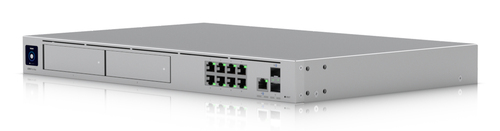

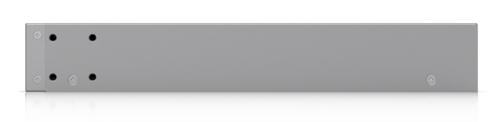

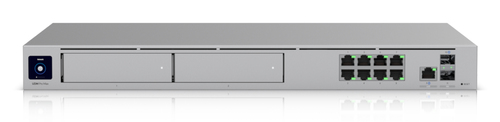

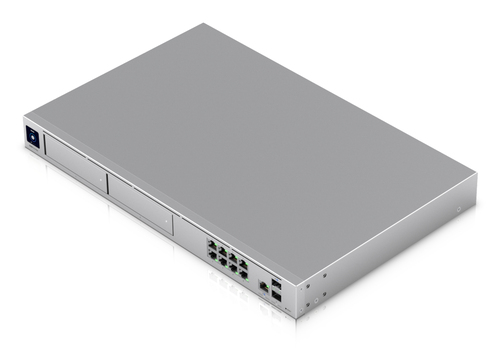

Ubiquiti UniFi Dream Machine Pro Max Managed 2.5G Ethernet (100/1000/2500) 1U Grey
Ubiquiti

613,29 EUR
plus shipping and customs
Hardware/ Electronic
Ubiquiti
Top 100
Shipping charges are minimized.
Ubiquiti 1Ubiquiti 2Ubiquiti 3Ubiquiti 4Ubiquiti 5Ubiquiti 6Ubiquiti 7104 visitors
are looking at this item
Delivery to US in: 12-16 workdays (ordered)
Sales Rank: #4 in Router/Switches
#34 in Computer
Style: Router/Switches
Product No.: 2101193595

Compare with similar items

ITEMS
Ubiquiti UniFi Dream Machine Pro Max Managed 2.5G Ethernet (100/1000/2500) 1U Grey
STARLINK Standard Kit V4 WLAN Router white/ grey
Box 7690 International wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
Teltonika RUT145 wireless router Fast Ethernet Single-band (2.4 GHz) Black
TP-Link 5G AX3000 Whole Home Mesh WiFi 6 Gateway
  "Ubiquiti-Ubiquiti UniFi Dream Machine Pro Max Managed 2.5G Ethernet (100/1000/2500) 1U Grey -Ubiquiti-Hardware/Electronic" "Starlink-STARLINK Standard Kit V4 WLAN Router white/ grey-Starlink-Hardware/Electronic" "Fritz!-Box 7690 International wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White -Fritz!-Hardware/Electronic" "Teltonika-Teltonika RUT145 wireless router Fast Ethernet Single-band (2.4 GHz) Black -Teltonika-Accessories" "Tp-link-TP-Link 5G AX3000 Whole Home Mesh WiFi 6 Gateway-Tp-link-Hardware/Electronic"

Item number21011935952101204174210126206521017726222100964595
On offer since17.10.202527.06.202429.05.202626.11.202517.08.2023
Price613,29 EUR676,99 EUR259,69 EUR59,49 EUR214,19 EUR
Weight4.7 kg2,9 g657 g140 g1.69kg
ManufacturerUbiquitiStarlinkFritz!TeltonikaTp-link
CategoryHardware/ElectronicHardware/ElectronicHardware/ElectronicAccessoriesHardware/Electronic
Width442.4 mm383 mm250 mm113.1 mm130 mm
Depth285.6 mm594 mm184 mm68.6 mm123 mm
Height43.7 mm39.7 mm48 mm25 mm210.5 mm

Other interesting products in Router/Switches
Strong - Router Mobile 5g X3000
Router Mobile 5g X3000
Strong

184,09 EUR
Teltonika - Teltonika Calyx 4G / EBD021 Network module Green
Teltonika Calyx 4G / EBD021 Networ...
Teltonika

37,99 EUR
Ubiquiti - Ubiquiti UACC-SSD-Tray M.2
Ubiquiti UACC-SSD-Tray M.2
Ubiquiti

32,79 EUR
Tp-link - TP-Link M8550(EU) cellular network device Cellular network router
TP-Link M8550(EU) cellular network...
Tp-link

309,49 EUR
Fritz! - Box 5690 Pro
Box 5690 Pro
Fritz!

326,49 EUR
Asus - ASUS ROG Rapture GT-BE19000AI wireless router 10 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) White
ASUS ROG Rapture GT-BE19000AI wire...
Asus

663,49 EUR
Teltonika - Teltonika RUTM30 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 6 GHz) 5G Black
Teltonika RUTM30 wireless router G...
Teltonika

412,49 EUR

Accessories

Description:

Description:Die Ubiquiti UniFi Dream Machine Pro Max wurde entwickelt, um die Netzwerkanforderungen von kleinen und großen Netzwerken zu erfüllen und kombiniert Hochgeschwindigkeitsverbindungen mit starken Sicherheitsfunktionen. Sie verfügt über einen integrierten 8-Port-Switch, zwei WAN-Ports und unterstützt mehrere Ethernet-Standards für zuverlässige und vielseitige Netzwerkverbindungen. Mit einem IDS/IPS-Durchsatz von 5 Gbit/s, VPN-Unterstützung und erweiterten Verschlüsselungsprotokollen sind Ihre Daten bestens ges
Gerätetyp: Gateway
LAN: 1000 MBit/s, 10 GBit/s
Anschlüsse: 8x RJ-45 (LAN) gesamt, 1x RJ-45 (WAN)
Kurzinfo: Ubiquiti UniFi Dream Machine Pro Max - Gateway 8-Port-Switch - 10GbE, 2.5GbE - WAN-Ports: 2 Gruppe Bridges & Router Hersteller Ubiquiti Hersteller Art. Nr. UDM-PRO-MAX EAN/UPC 0810084693254 Produktbeschreibung: Ubiquiti UniFi Dream Machine Pro Max - Gateway - Desktop Gerätetyp Gateway - 8-Port-Switch (integriert) Gehäusetyp Desktop WAN-Ports Anz. 2 Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet Leistung IDS/IPS Throughput: 5 Gbps Netzwerk/Transportprotokoll DHCP, WireGuard, L2TP, OpenVPN Routing Protocol IGMP Remoteverwaltungsprotokoll IPv6, DHCP Leistungsmerkmale Aluminium-/Stahlgehäuse, Quad-Core CPU, Bluetooth-Verwaltung, 15KV ESD Protector (Luftspaltentladung), 8KV ESD Protector (Kontaktentladung), Reset-Taste, ISP, IGMP-Proxy, DHCP-Server, DHCP-Relais, OpenVPN-Server, OpenVPN Client, Site-to-Site Replication, Policy-Based WAN, VPN Routing, QoS, Cloud-verwaltet Stromversorgung Wechselstrom 100-240 V Abmessungen (Breite x Tiefe x Höhe) 44.24
The Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max) is a high-performance all-in-one enterprise gateway solution designed for advanced networking, security, and management. Featuring an 8-core ARM Cortex-A57 processor, 16 GB DDR4 RAM, and dual WAN ports with failover support, it delivers exceptional throughput and reliability for demanding environments. The device includes eight Gigabit Ethernet LAN ports, two SFP+ 10G uplink ports for fiber connectivity, built-in UniFi Network Controller software for centralized network management, and a large-capacity NVMe SSD slot to enable video surveillance storage via UniFi Protect. With integrated threat management powered by deep packet inspection (DPI), intrusion detection/prevention systems (IDS/IPS), VPN capabilities, VLAN segmentation, and robust firewall rulesets'all managed through an intuitive interface'the UDM-Pro-Max is ideal for businesses seeking comprehensive control over their networks. Ubiquiti is renowned globally as a leader in innovative networking technology that combines performance with user-friendly design. The company emphasizes sustainability by optimizing product energy efficiency and minimizing packaging waste; many of its devices are engineered to consume less power while maintaining top-tier functionality. By choosing the UDM-Pro-Max from Ubiquiti, customers not only benefit from cutting-edge features but also contribute positively towards environmental responsibility'making every purchase a step toward smarter infrastructure and a greener future.
Manufacturer No.: UDM-PRO-MAX
Product Safety

Technical specifications

Language

Ports & interfaces

WAN connectionEthernet (RJ-45), SFP+
SFP+ ports quantity2
Ethernet LAN (RJ-45) ports9

Power

Power over Ethernet (PoE)No
Power consumption (max)60 W
Input voltage100 - 240 V
Input frequency50/60 Hz
Input current2 A
Heat dissipation205 BTU/h
Electrostatic Discharge (ESD) protection (contact)8 kV
Electrostatic Discharge (ESD) protection (air)15 kV
Electromagnetic (EMP) protection (contact)8 kV
Electromagnetic (EMP) protection (air)15 kV
Electromagnetic (EMP) protectionYes
DC input voltage12 V

Weight & dimensions

Width442.4 mm
Weight4.7 kg
Height43.7 mm
Depth285.6 mm

Network

Port aggregationYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s

Operational conditions

Operating temperature (T-T)-10 - 40 °C
Operating relative humidity (H-H)5 - 95 %

Security

VLAN supportYes
Firewall securityYes

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)

Protocols

Routing protocolsOSPF, BGP
DHCP serverYes

Management features

Reset buttonYes
Quality of Service (QoS) supportYes
Multicast supportYes

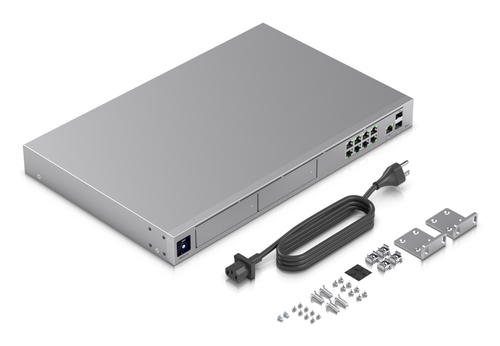

Packaging content

Cables includedAC

Performance

SSD capacity128 GB
Processor modelCortex-A57
Processor manufacturerARM
Processor frequency2000 MHz
Processor familyARM Cortex
Number of processors installed1
Internal memory8000 MB
Flash memory32000 MB
Display typeLCM
Control display unitYes
Built-in processorYes

Design

Rack capacity1U
Product colourGrey
Mounting typeRack mounting
LED indicatorsActivity, Error, Link, Ready
Enclosure materialAluminium/SGCC
