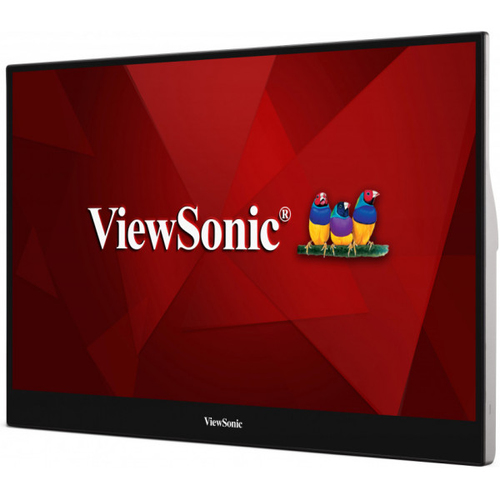

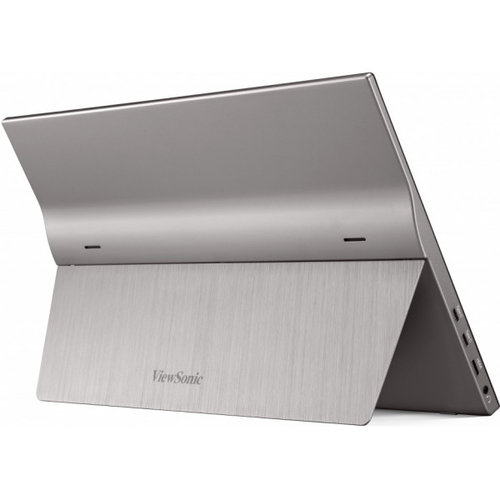

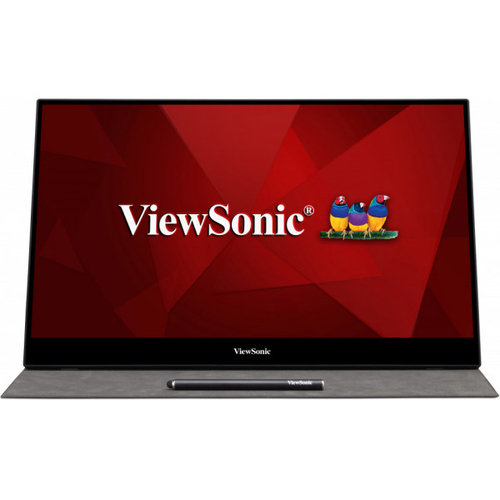

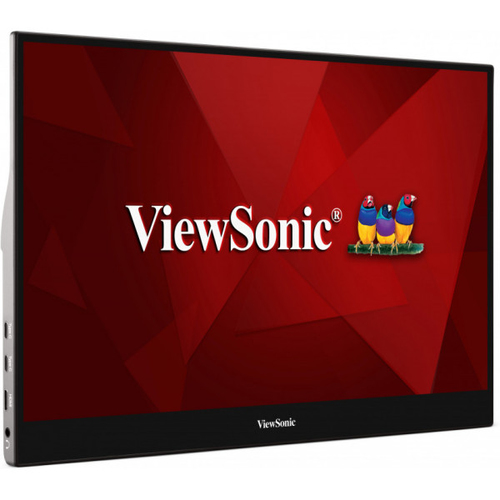

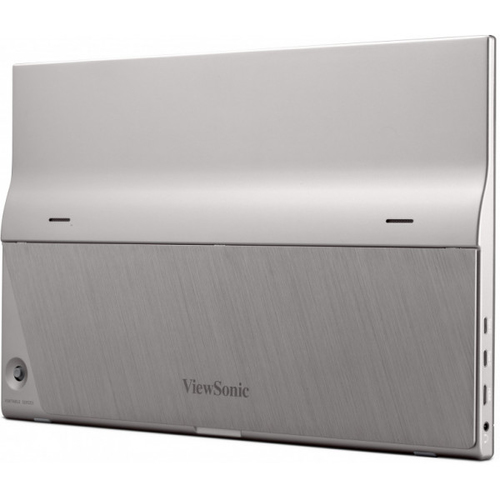

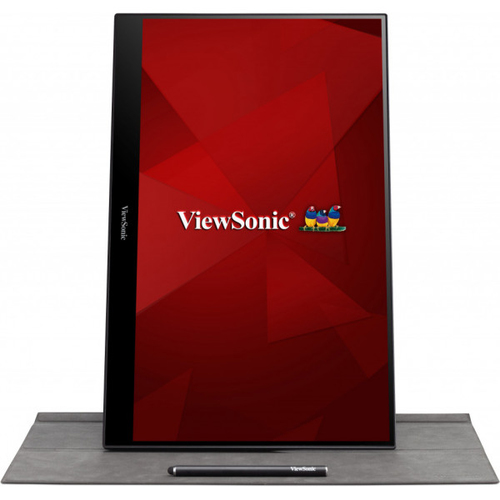

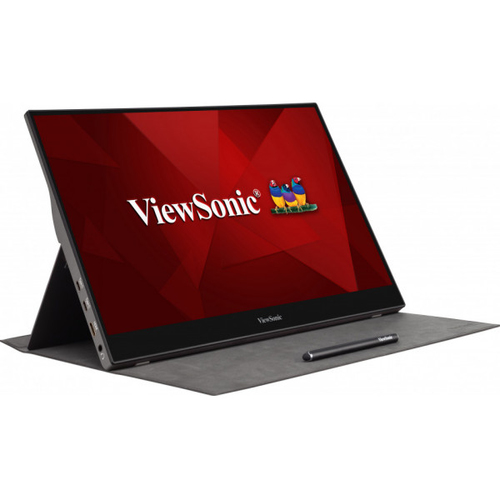

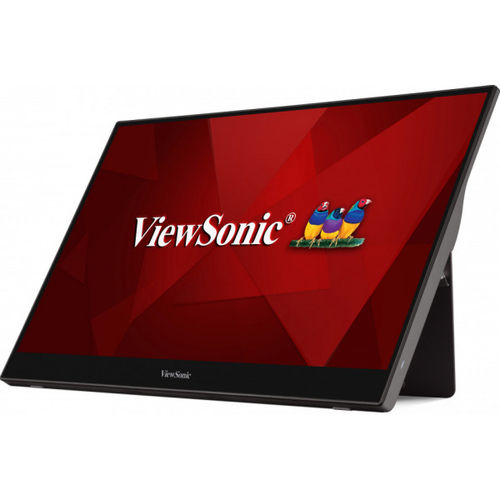

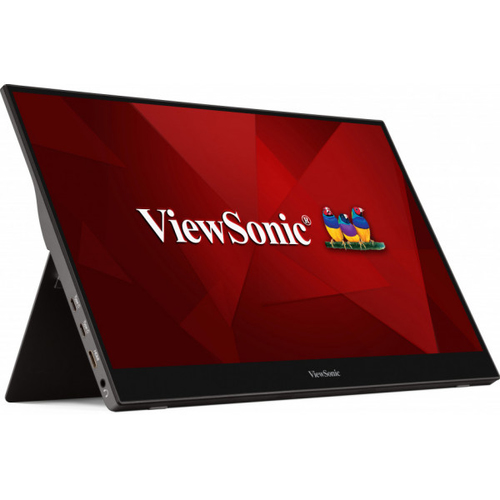

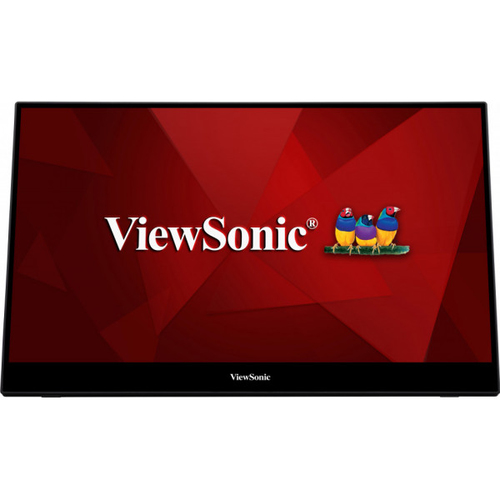

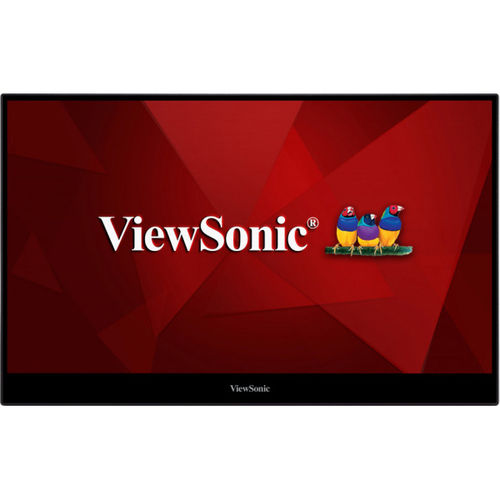

ViewSonic TD1655 - 15.6" LED Monitor - 39.6 cm (15.6" viewable) - Touchscreen - 1920 x 1080 Full HD (1080p) - TN - 250 cd/m² - 800:1 - 14 ms - HDMI, USB-C - LoudSpeaker Group Monitors Manufacturer: ViewSonic Manufacturer: TD1655-US Model TD1655 EAN/UPC 07669070077 Product Description: ViewSonic D1655 - LED monitor - Full HD (1080p) - 39. 15.6" LED Backlit LCD Monitor Device Type - 15.6" Touch Screen Features Touchscreen Screen Type TN Aspect Ratio 16:9 Native Resolution Full HD (1080p) 1920 x 1080 Brightness 250cd/m² Contrast 800:1/50000000:1 (Dynamic) Response Time 14ms (Typical), 6.5ms (Grey-to-Grey with Overdrive) Color support 262,000 colors Input Connections HDMI, USB-C Display Position Settings Tilt Screen Coating 6H Hard Coating Dimensions (Width x Depth x Height) - Without foot 35.5 cm x 1.6 cm x 22.3 cm Weight 1 kg Environmental standards ENERGY STAR-qualified labeling ICES-003, CTuVus,
ViewSonic Europe Limited Haaksbergweg 75, 1101 BR Amsterdam, Niederlande EPREL@viewsoniceurope.com
Technical specifications
Language
Sustainability
Sustainability certificates
EPEAT Bronze
Packaging content
Cables included
Mini-HDMI, USB Type-C, USB Type-C to USB Type-A
Logistics data
Harmonized System (HS) code
85285210
Packaging data
Package width
440 mm
Package depth
288 mm
Package height
89 mm
Package weight
2.3 kg
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
1.6 W
Built-in microphone
No
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Windows operating systems supported
Windows 10
Mac operating systems supported
Yes
Design
Product colour
Black, Silver
Other features
Display viewable area (HxV)
344 x 194 mm
Compliance certificates
CE, REACH, RoHS
Certification
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
Ergonomics
Wall mountable
No
Tilt adjustment
Yes
Tilt angle range
-20 - 60 °

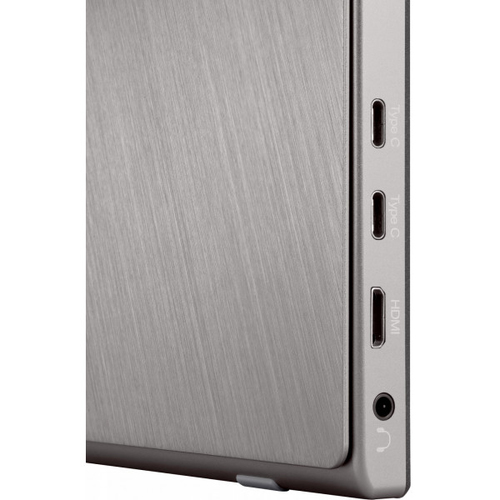

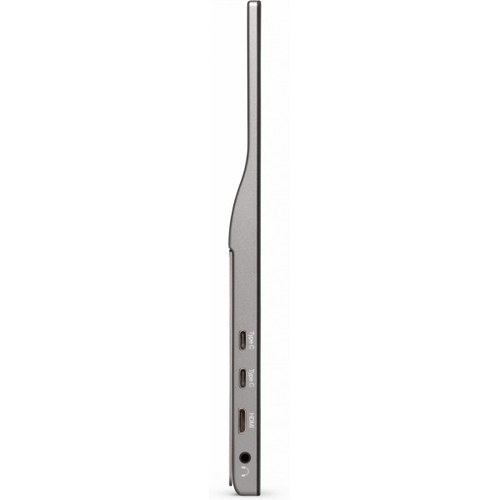

Ports & interfaces
Built-in USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB upstream port type
USB Type-C
Audio output
1
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90 %
Storage relative humidity (H-H)
5 - 90 %
Display
Display diagonal
39.6 cm
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Display technology
LED
Touchscreen
Yes
HD type
Full HD
Panel type
IPS
Response time
6.5 ms
Screen shape
Flat
Contrast ratio (typical)
800:1
Maximum refresh rate
60 Hz
Display number of colours
262144 colours
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness
250 cd/m²
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (dynamic)
80000000:1
Viewing angle, horizontal
178 °
Viewing angle, vertical
178 °
Pixel pitch
0.179 x 0.179 mm
Horizontal scan range
15 - 82 kHz
Vertical scan range
50 - 75 Hz
Display diagonal (metric)
39.6 cm
Power
Energy efficiency class (SDR)
C
Energy consumption (SDR) per 1000 hours
8 kWh
Power consumption (typical)
8 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power supply type
AC
